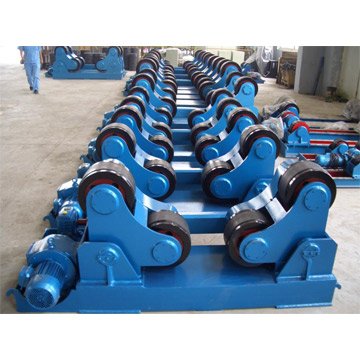

Boiler/ Vessel Rotating Wheel
Key Features
Catering to the Needs of Heavy Vessel / Boiler Manufacturing Industry, We have Specialised Ourselves in the Manufacturing of Rotator Wheels. We have ready Sizes of Wheels Starting from 12” to 24” with Various Breadth’s upto 10” and Capable of Withstanding Rotating Loads from 500 Kgs to 5 Tons each.
These Wheels are made by Bonding Rubber Lining on M.S. Rims. These Rims have Zero Tolerance for Perfect Hub Fittings . Rubber Lining is made from Blending of Natural & Synthetic Rubber to give it Maximum Compression Set. Rubber Lining has Hardness at Higher side of Shore A to withstand extremely high loads.
These Rotator Wheels can also be made as per Customer Sizes & Requirements. Types of Rotator Wheels are :
Band On Type 1 : Having Rubber Lining on M.S. Rim with Hollow Centre.
Band On Type 2 :
Rubber Lining on M.S. Rim with 2 Centre Plate & One Centre Pipe having key Slots used as Drive Wheels & Idler Wheels.
Sizes and Dimension Details:
*Customized sizes and shapes can be Made-to-Order on bulk basis.
| Tyre Code | Tyre Size OD & ID (Inches) |
Size (MM) |
Load Capacity (Kgs) |
| EVRW 1005 | 10 x 5 | 250 x 125 | 1020 |
| EVRW 1006 | 10 x 6 | 250 x 150 | 1225 |
| EVRW 1205 | 12 x 5 | 305 x 125 | 1225 |
| EVRW 1206 | 12 X 6 | 305 X 150 | 1470 |
| EVRW 1207 | 12 X 7 | 305 X 175 | 1700 |
| EVRW 1208 | 12 X 8 | 305 X 200 | 1950 |
| EVRW 1305 | 13 X 5 | 330 X 129 | 1325 |
| EVRW 1306 | 13 X 6 | 330 X 152 | 1590 |
| EVRW 13035 | 13 ½ X 3 ½ | 340 X 87 | 965 |
| EVRW 1304 | 13 ½ X 4 | 340 X 100 | 1102 |
| EVRW 13045 | 13 ½ X 4 ½ | 340 X 115 | 1240 |
| EVRW 14035 | 14 ¼ X 3 ¼ | 365 X 80 | 945 |
| EVRW 1404 | 14 ¼ X 4 | 365 X 100 | 1160 |
| EVRW 1505 | 14 ¾ X 5 | 375 X 127 | 1500 |
| EVRW 1506 | 14 ¾ X 6 | 375 X 152 | 1800 |
| EVRW 1604 | 16 X 4 | 400 X 103 | 1300 |
| EVRW 1605 | 16 X 5 | 400 X 125 | 1625 |
| EVRW 1606 | 16 X 6 | 400 X 150 | 1960 |
| EVRW 16105 | 16 1/8 X 5 | 410 X 125 | 1645 |
| EVRW 16106 | 16 1/8 X 6 | 410 X 150 | 1975 |
| EVRW 17045 | 17 X 4 ½ | 425 X 115 | 1560 |
| EVRW 1705 | 17 X 5 | 425 X 125 | 1734 |
| EVRW 1706 | 17 X 6 | 425 X 150 | 2080 |
| EVRW 1805 | 18 X 5 | 450 X 129 | 1830 |
| EVRW 1806 | 18 X 6 | 450 X 152 | 2200 |
| EVRW 1807 | 18 X 7 | 450 X 178 | 2570 |
| EVRW 1905 | 19 ½ X 5 | 490 X 130 | 1950 |
| EVRW 1906 | 19 ½ X 6 | 490 X 150 | 2350 |
| EVRW 2004 | 20 X 4 | 500 X 95 | 1625 |
| EVRW 2005 | 20 X 5 | 500 X 125 | 2000 |
| EVRW 2006 | 20 X 6 | 500 X 150 | 2400 |
| EVRW 2106 | 21 X 6 | 535 X 152 | 2550 |
| EVRW 2107 | 21 X 7 | 535 X 177 | 3000 |
| EVRW 2105 | 21 ½ X 5 | 550 X 127 | 2150 |
| EVRW 2106 | 21 ½ X 6 | 550 X 152 | 2600 |
| EVRW 2205 | 22 X 5 | 560 X 129 | 2250 |
| EVRW 2206 | 22 X 6 | 560 X 152 | 2600 |
| EVRW 2308 | 23 ¼ X 8 | 590 X 197 | 3500 |
| EVRW 2309 | 23 ¼ X 9 | 590 X 225 | 4200 |
